Tooling and Tool Storage Solutions
To meet the demands of custom press brakes, CAMT offers advanced tool storage solutions tailored for both standard and custom press brake tooling, including the Tool Station (a modular system for tooling storage and changeover) and standard tooling cabinets.
Tool Management System: Press Brake Tool Organization, Loading, and Unloading

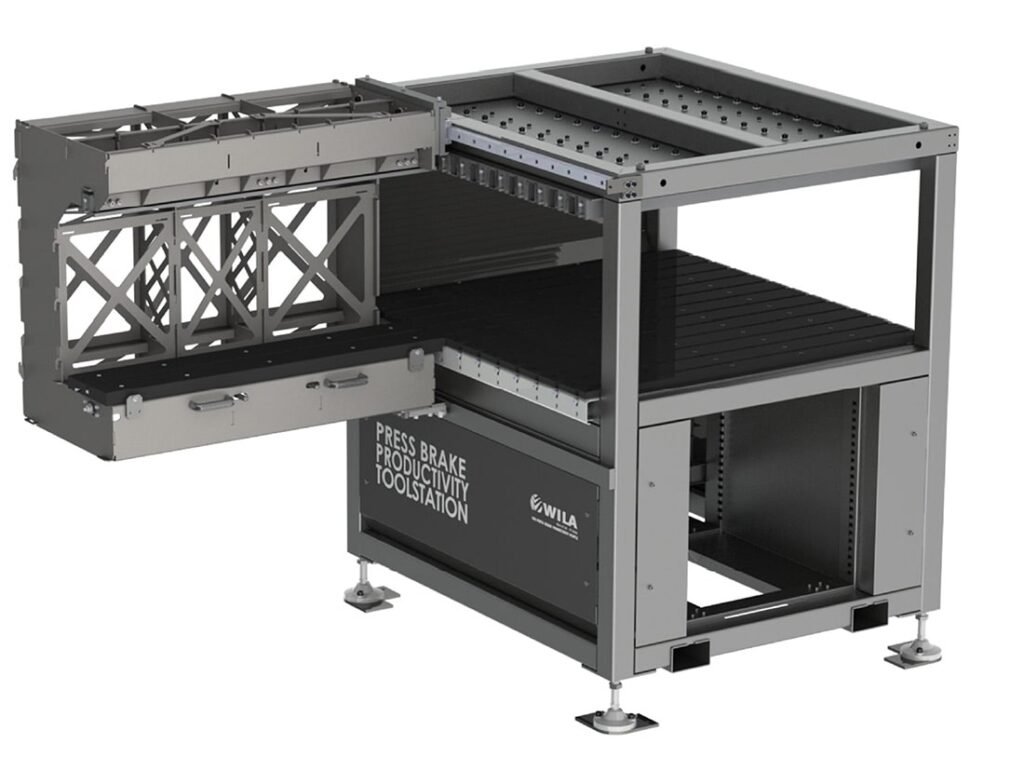

The Press Brake Productivity Tool Station comes in two variants, both engineered for the secure storage and exchange of WILA tooling. The ‘HD’ model is built for handling large, heavy tools and is compatible with the NSCL-HD-II-HC Heavy Duty Clamping system. The standard model is suited for smaller tools and works seamlessly with the WILA Premium Clamping system.

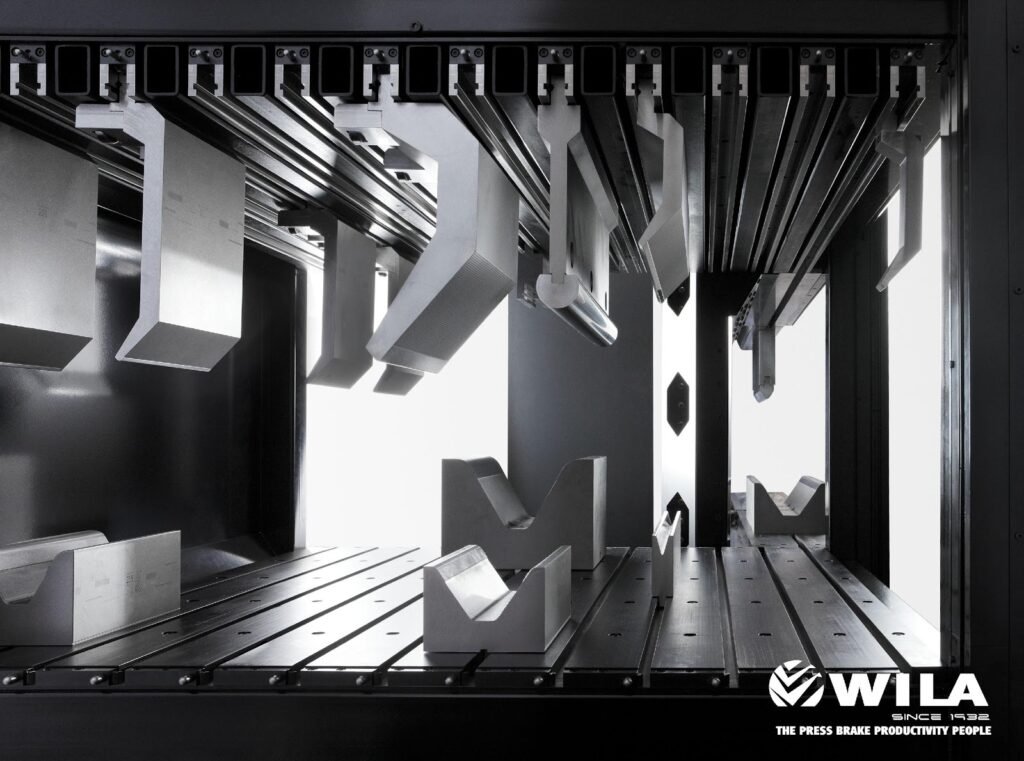

The connection between the press brake and the Tool Station is facilitated by two loading and unloading arms equipped with a roller and ball bearing system. This setup allows for swift, effortless, and safe storage, loading, and unloading of punches and dies of all sizes. Our system enhances operator working conditions and boosts productivity.
The CAMT Press Brake Productivity Tool Station:

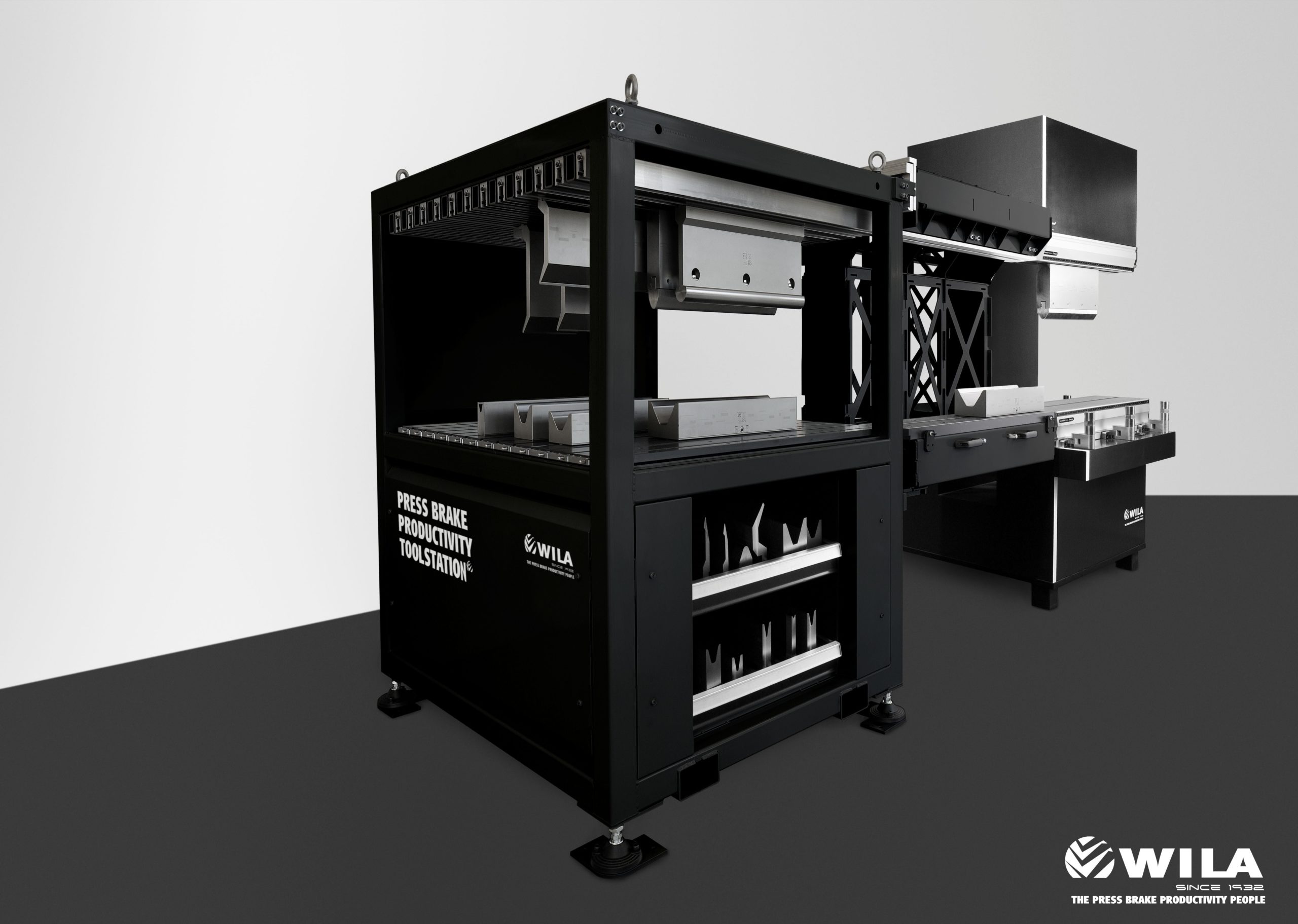

The Press Brake Productivity ToolStation is suitable in combination with NSCL/NSCR-II-HC and NSCL/NSCR-HD-II-HC and will be delivered with 1 module and one load/unload arm.
- Dimensions approximately 2500mm x 1500mm (floor plan incl. arm)
- Storage capacity 12 meters punches and 12 meters dies
- Equipped with 1 load/unload arm for top and bottom (left), length approximately 1150 mm
- Upper storage & load/unload arm equipped to support E2M ‘centric’
- Max. allowable load on load/unload arm 250 kg
- Height loading surface for the dies is adjustable between 940mm and 1065mm above the floor
- Daylight opening 490mm
- Loading and unloading possible at all storage positions
- Sheet metal covers on top and all 4 sides
- Tooling area accessible from 3 sides
- Color “Wila black”
- Usable for NS-tools with max width 300mm (centric against centerline)
- Guards to suit Wila made New Standard HC Tool Holders
- Alternative daylight opening
- ToolStation load/unload arm on right side
- 2 rolling shutters (one to the front and one opposite of load/unload arm)
- Color according to customers request
- Support rail under load/unload arm
- Cabinet, containing 2 drawers (max. load 200kg each) built into the base
- Illumination, positioned in the upper section
- Additional ToolStation module, without load/unload arm
